Casket Builder Supply

Regular price $7.91 Sale

Rarely Seen on Caskets Since 1940

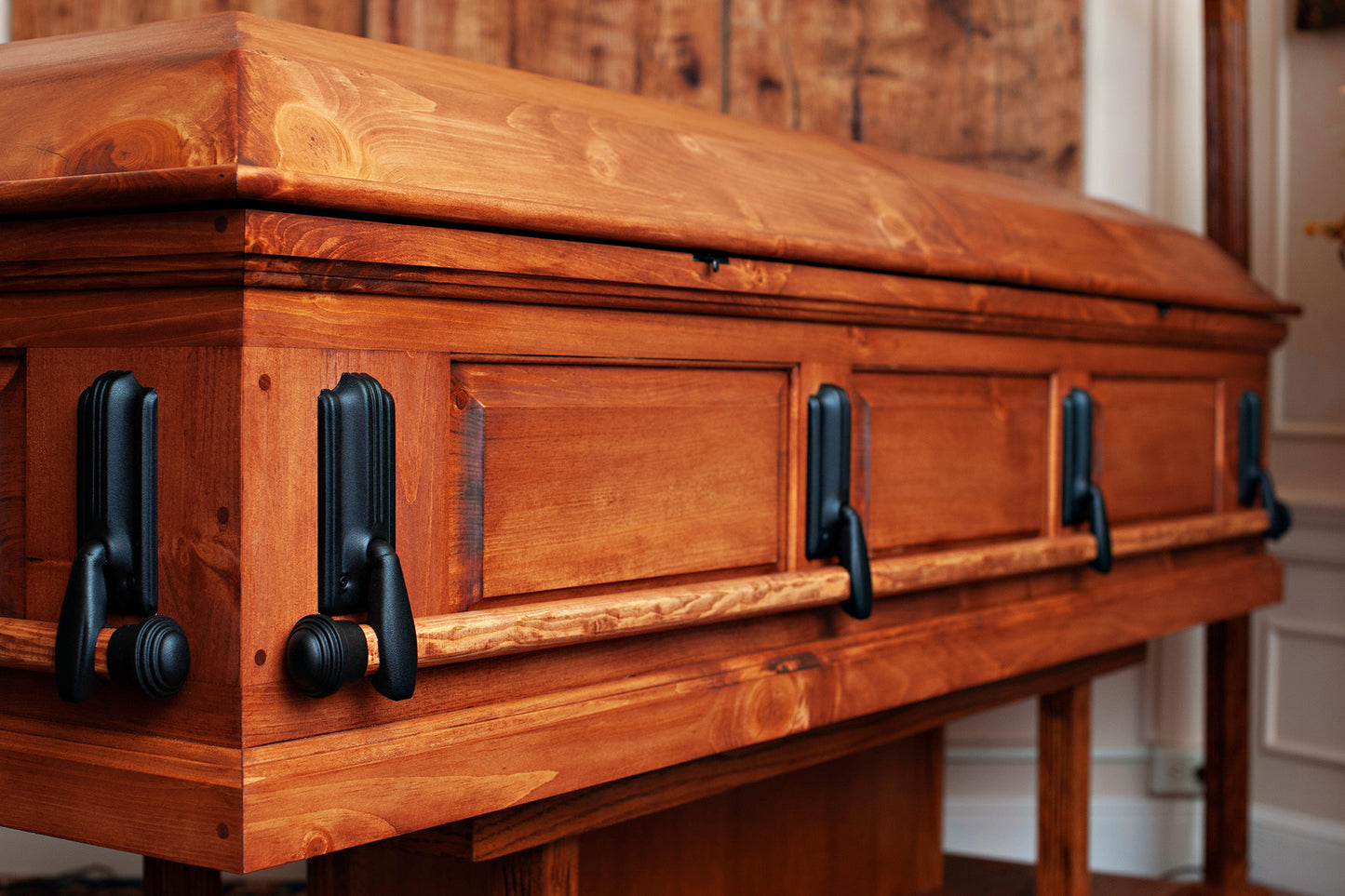

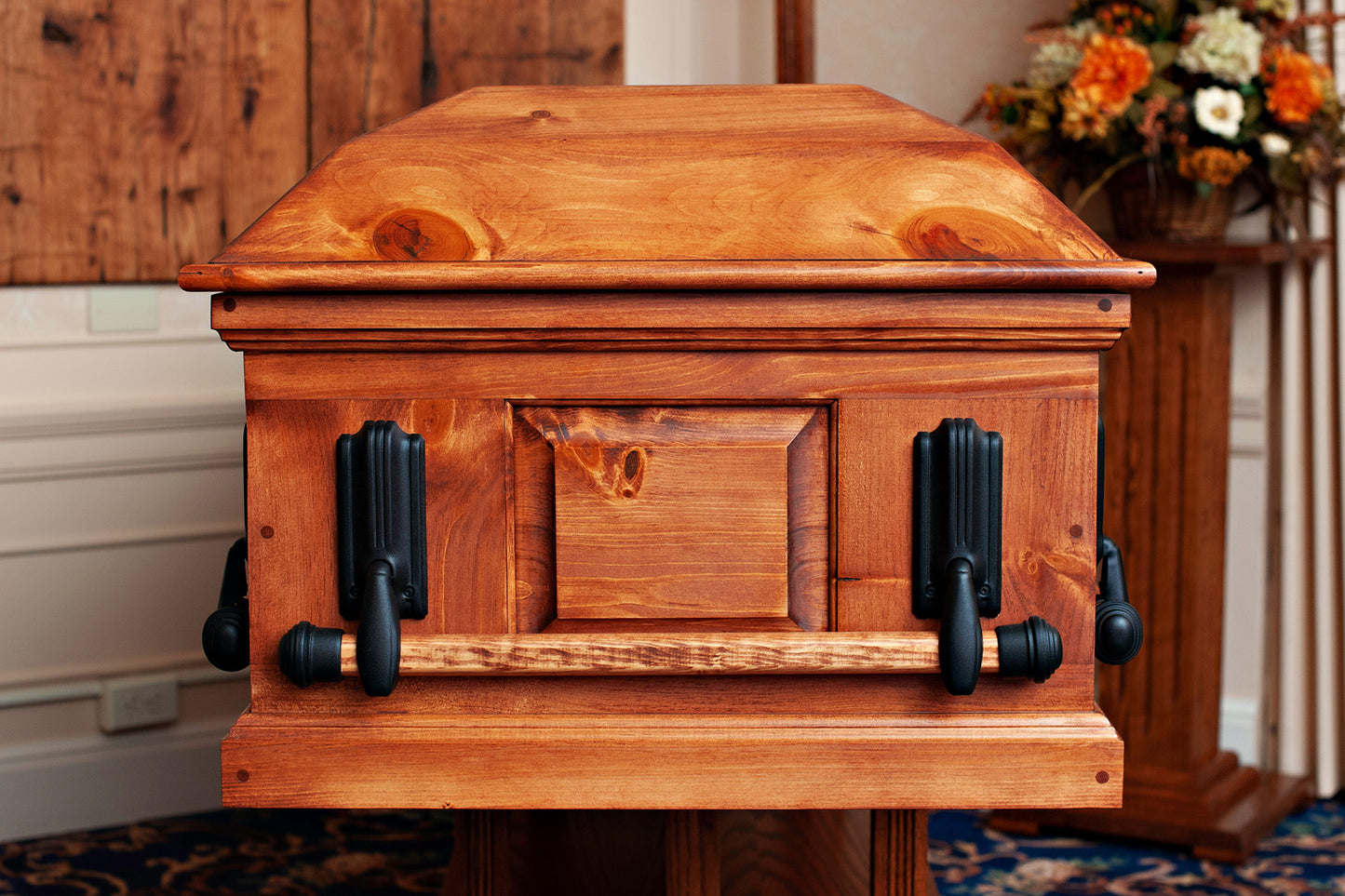

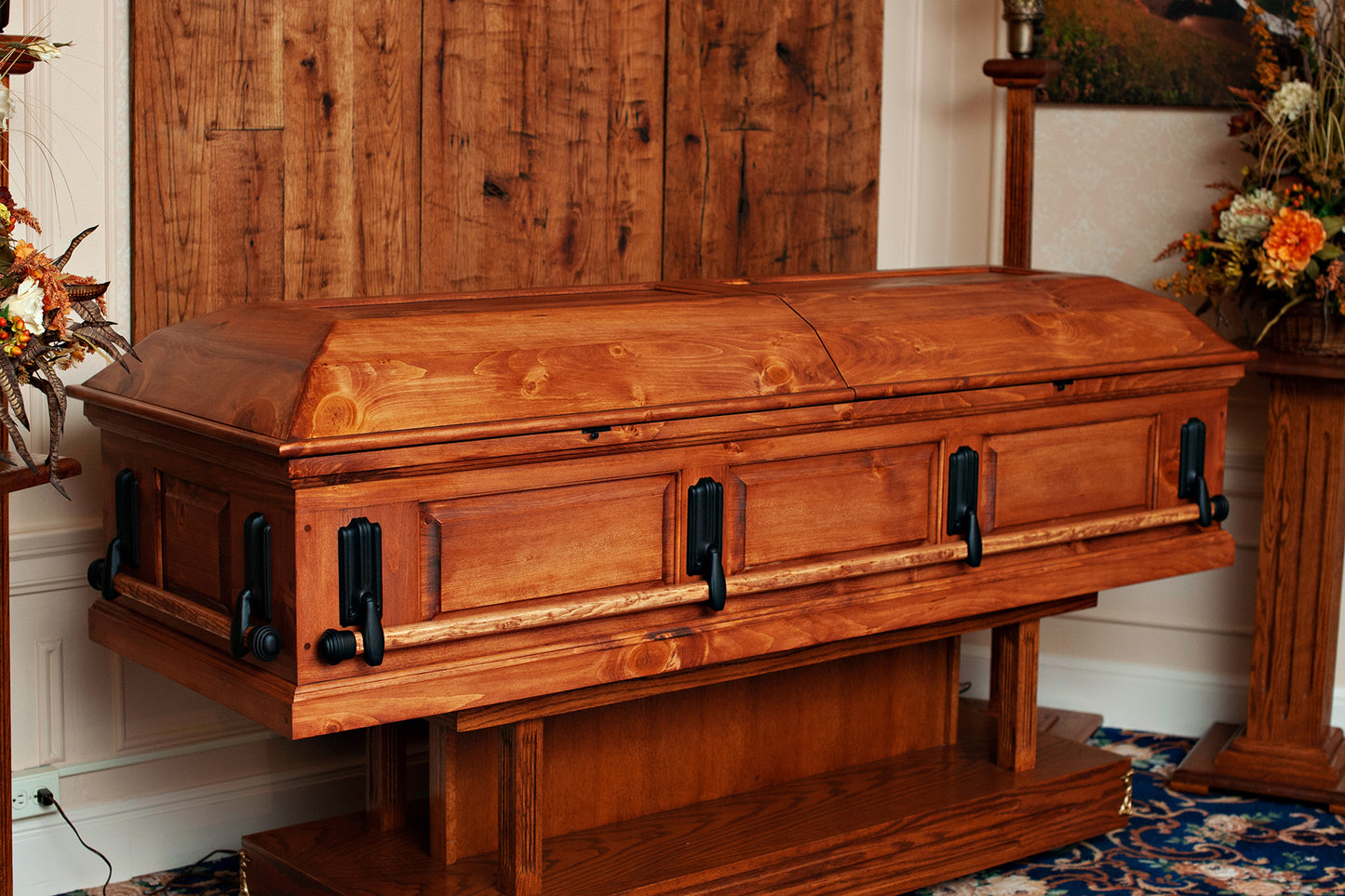

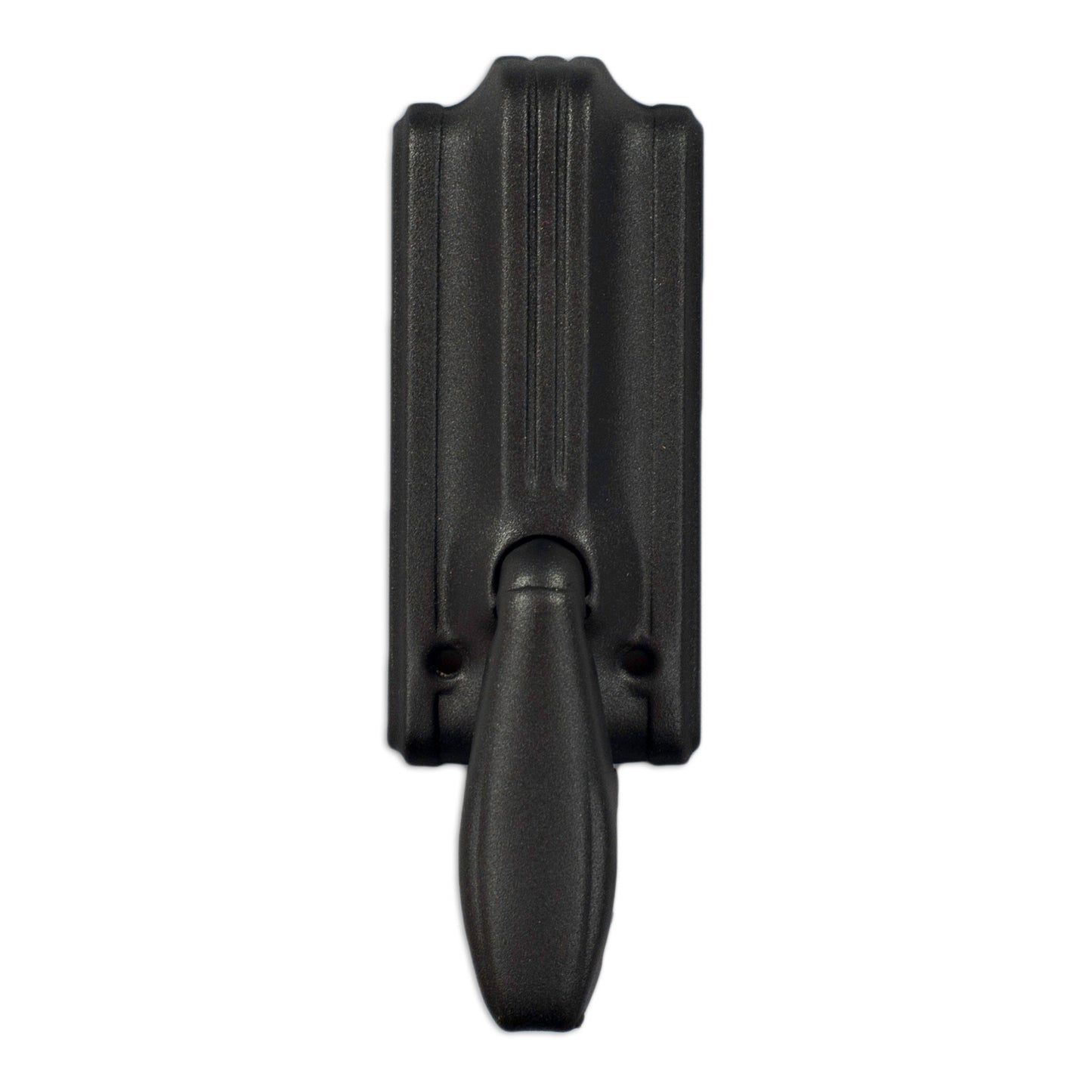

This is truly a vintage Art Deco style casket handle bracket. This steel arm and adapter style casket handle is common on wood caskets. This type of arm hinges on a patented 3-hole pattern that is connected to an Art Deco single arm adapter, or lug. The adapter is secured to the outside of a wood casket with two screws. The arm is wrapped around an oval dowel handle made from wood or steel oval bar stock.

This arm is available in two sizes including a 1x1-1/4 oval and a 1x1-3/8 oval. Both are compatible with our wooden oval dowel handles, with the smaller of the two making for a nice tight fit with our 1x1-1/4 oval wooden dowels. The 1x1-3/8 arm and adapter is a little easier to fit--especially if you are making your own oval dowel handles with a 1-inch bullnose bit, then order the 1x1-3/8 size.  If you are fitting with our oval steel bar stock, use the 1x1-1/4 size.

Order a set of 16 for a 6x2 handle pattern, or 12 for a 4x2 handle pattern. Add matching end caps to give your project a completed look.

This swing bar is the real vintage. We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1940s. Learn more about these vintage parts by reading about our suppliers.

The first thing you will notice when you receive these parts is that the steel is higher quality and heavier gage than many similar brackets made by others.

Arm is available in plain steel and in a variety of powder coated finish colors. If you have a particular color request, let us know and we can quote you. Plain steel arm and adapter come separate ready for finishing. Powder coated arms come preassembled with the adapter.

Specifications

  • Parts: G390 + G270 or G265
  • Bracket Height: 8 in.
  • Adapter Height: 6 in.
  • Adapter Width: 2-5/8 in.
  • Arm Length: 4 in.
  • Arm Width: 1-1/4 in.
  • Arm Protrusion (at rest): 1-1/4 in.
  • Handle Size: 1x1-1/4 Oval or 1x1-3/8 Oval
  • Steel (arms): 0.025 (1/40 inch) - 24 ga.
  • Steel (adapters): 0.050 inches (1/20 inch) - 18 ga.
  • Steel Source: Made in USA, Always
  • Finish: Plain Steel or Powder Coat

Building a casket?


Want to learn more about building caskets? Have a look at our friendly casket builder's guide, So You Wanna Build a Casket?
