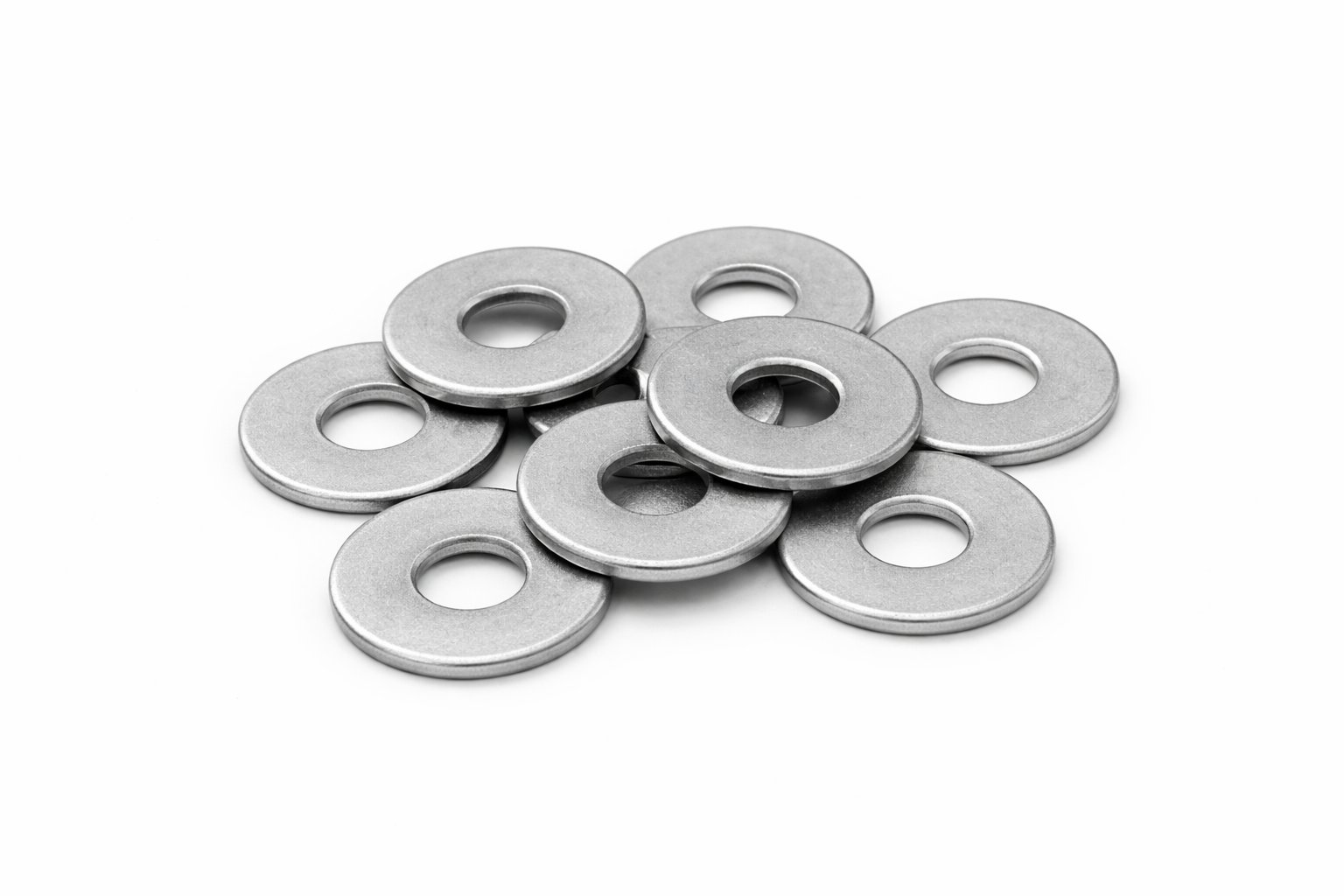

Washer, Flat, #10

This washer is used in conjunction with a machine screw and nut to secure swing bar arms to the casket wall.

Washers are thin disk-shaped plates with a hole that is used to distribute the load of a threaded fastener such as a bolt or nut.

Available in the following quantities:

• 1 LB (Approximately 425 pieces)
• 5 LB (Approximately 2125 pieces)

Specifications:

• Fastener Type:  Glat Washer, SAE Pattern
• Size Description:  #10
• Diameter/Nominal Size:  #10 (Washer sizing: Washer sizes are nominal-sized for the bolt that the washer will fit. Actual inside diameter is almost always larger than stated size.)
• Inside Diameter:  0.220 in.
• Outside Diameter:  0.500 in.
• Thickness:  0.036-0.065 in.
• Grade:  2
• Material:  Low Carbon Steel
• Finish:  Plain Finish/No Plating
• Used with:  Bolts/Screws up to Grade 5
