Steel spring bed frame and lift mechanisms for caskets

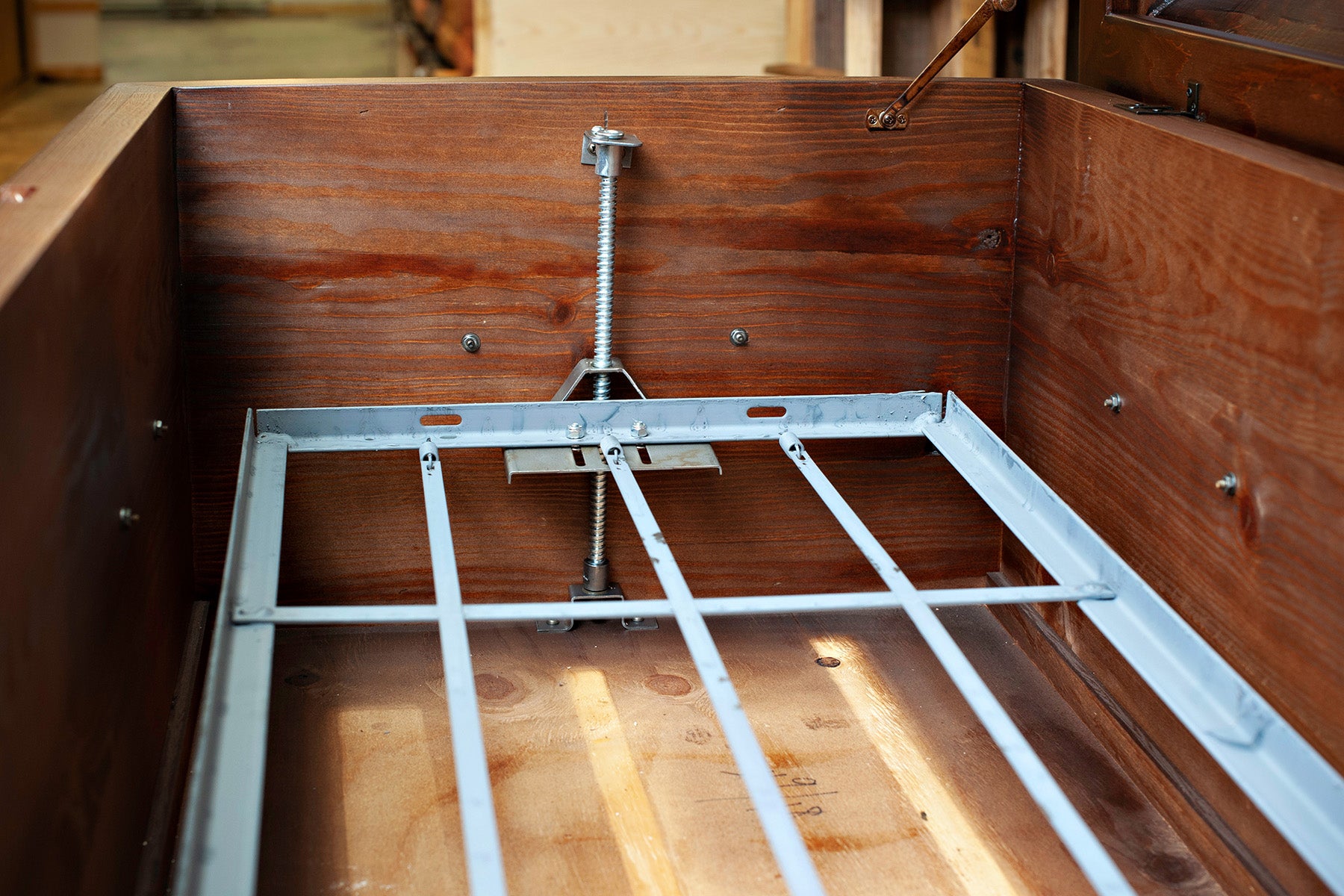

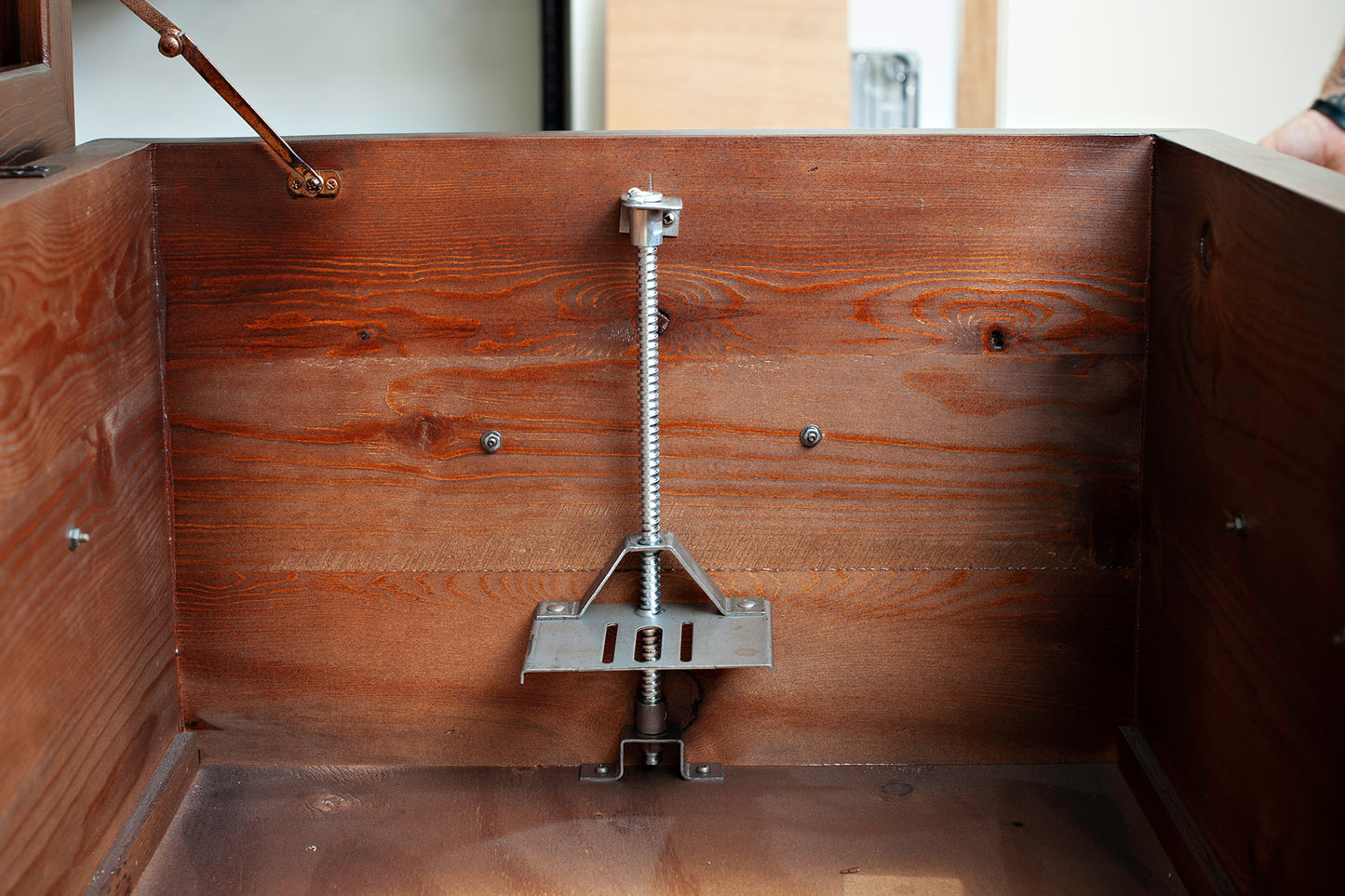

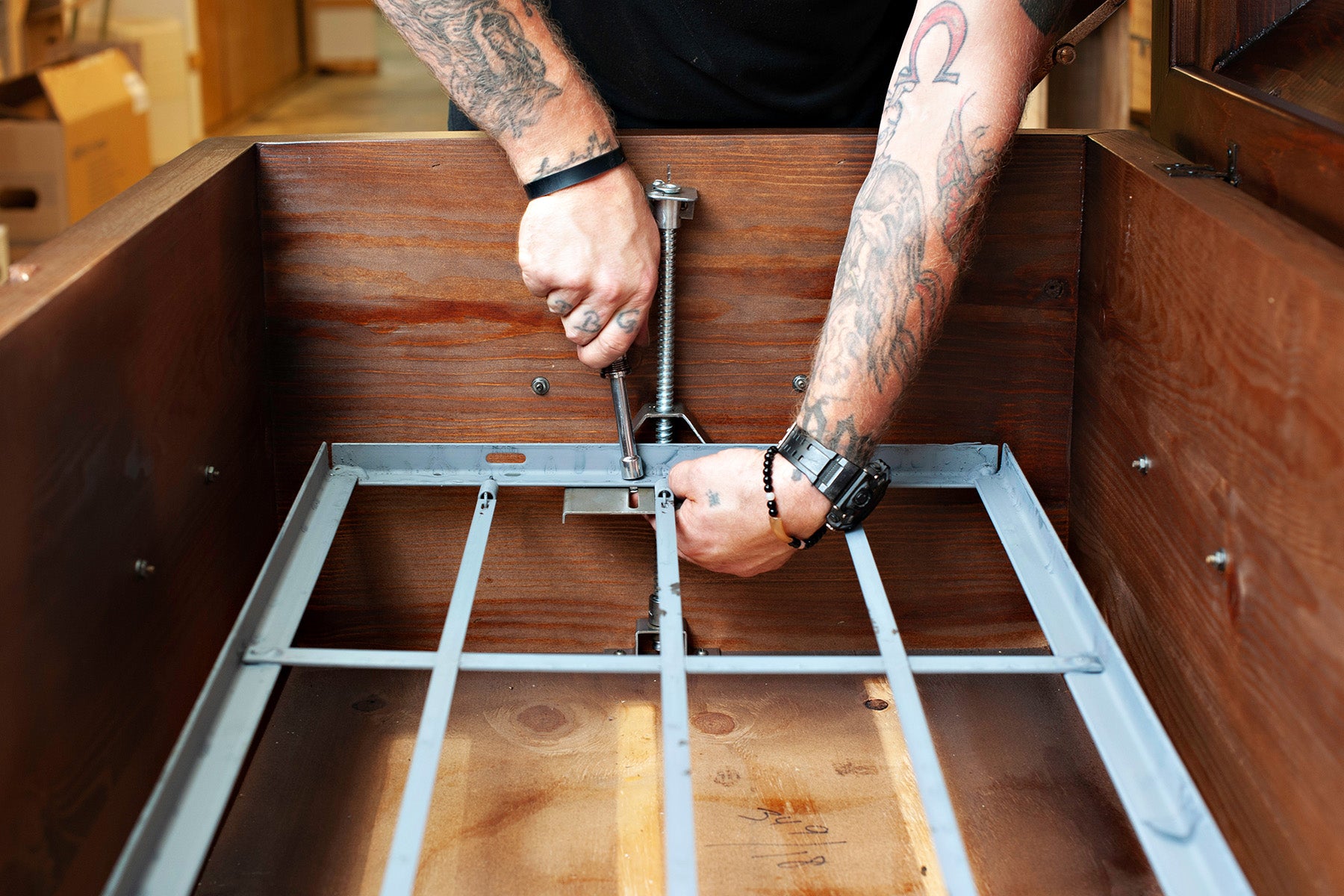

This steel bed frame is the perfect foundation for the bedding of your casket. When installed with lift mechanisms, this bed frame can be raised and lowered to adjust the viewing position from either end of the casket. Lift mechanisms allow 11 inches of adjustment. Adjustments are made with a hex wrench (or crank).
- Steel spring bed length: 73-1/4 inches
- Steel spring bed width: 18-1/4 inches
- Steel spring bed Thickness: 1 inch
- Lifting mechanism height: 14 inches
- Lifting mechanism width: 4 inches
- Lifting mechanism depth: 4 inches
- LIfting mechanism adjustment: 11 inches
- Material: Steel
- Origin: Made in USA
Use a plywood or edge-glued panel as an alternative to the steel spring bed
While the steel spring bed and lift mechanisms are sold as a set, you can also purchase them separately. As an alternative, some customers purchase only the lift mechanisms and make an edge-glued wood panel or plywood bed. Lift mechanisms include all hardware required for installation.
Consider lining this steel bed frame with our Universal Casket Mattress and Pillow set designed to fit this bed perfectly.
Amateur wood worker
built furniture for everyone else told my wife I was going to build something for myself and it was going to be my own casket. Had no planes just a picture of you maple casket figured out sizes and measurements by studying the pictures and here it is going to start my wifes soon
Quality Products. Exemplary Service.
Due to a breakdown in communication within my organization, we suddenly found ourselves running out of bed lifts in the middle of the week. I called Mary @ Casket Builder Supply in a panic yet within 3-5 minutes she had me calmed down with her assurance my order would be on the way within hours. It is partnering with vendors like CBS that have been so instrumental in our organization reaching the point in two short years. Not only do we view the crew at CBS as friends and partners now, their willingness to share their hard earned wisdom has been priceless to us. From the team here at R&L Woodworks to our "family" at CBS, please know you are valued and appreciated beyond mere words.
Casket adjustable bed
This product worked great!! I used the lift hardware only and used 3/4 plywood with 3/4 × 1 1/2 support strips along edges. Due to the nature of our casket design shorter lifts would be great. Thanks for your kind and professional service.!! Steve
Casket Builder Supply
Hi Steve, thank you for the feedback. We are currently having 11-inch lifts made to offer a shorter version than this one at 14-inches.
Building my casket
Bed lift works good I used 3/4 plywood
Ok I put in my order and they came fairly quick no complaints on order taken order gotten in short order. But the problem is the lifts are wrong again. There 12.25” and correct ones are 11.25”. I was told it will be the correct length this time but obviously they are not and will take need to cut them down.
