Top Support Universal Kit

Description

Secure the casket lid in the open position

Top supports secure the casket lid in the open position and prevents the lid from opening too far. Use a pair of top supports for each casket--one top support at the head end, and one at the foot end on both full and half-couch models.

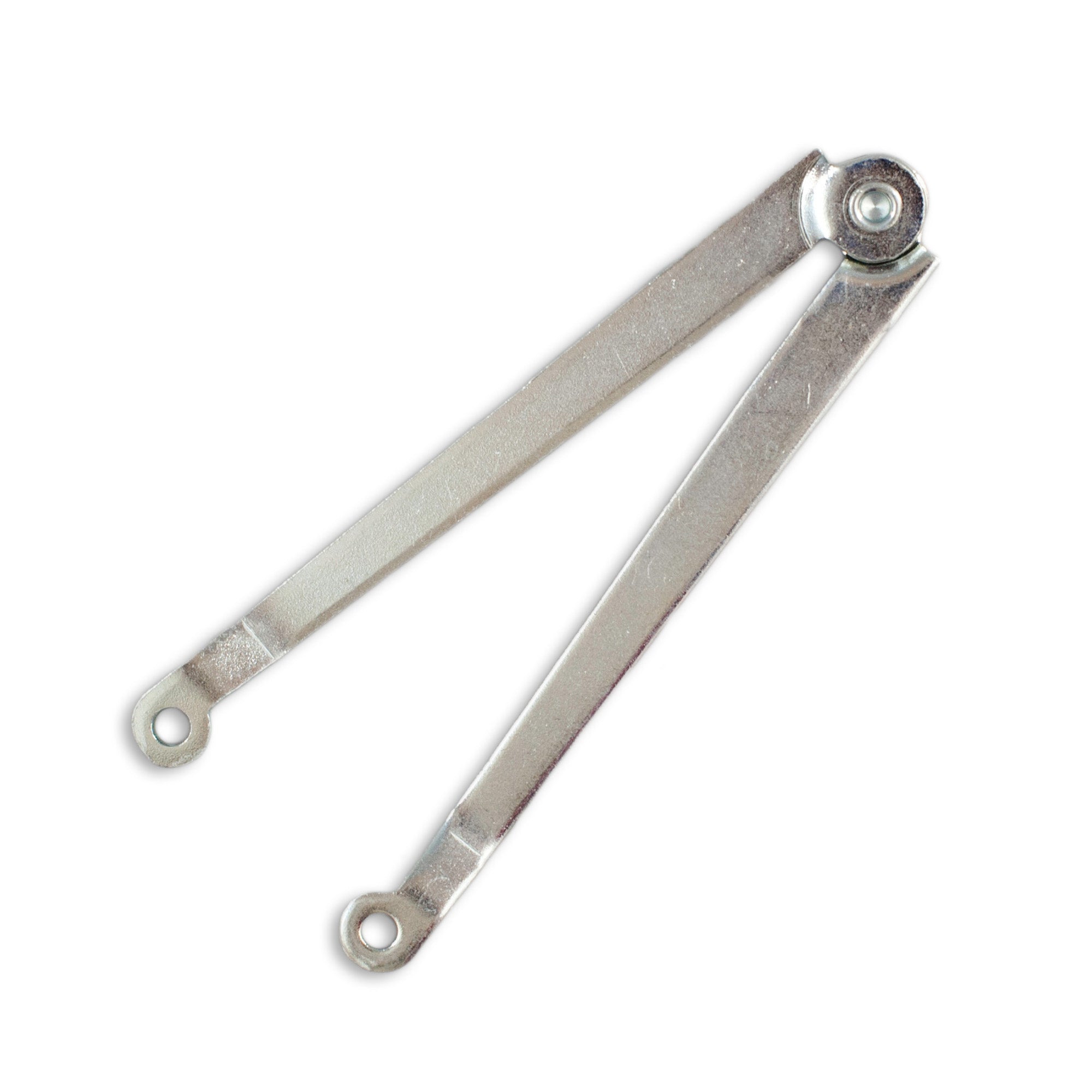

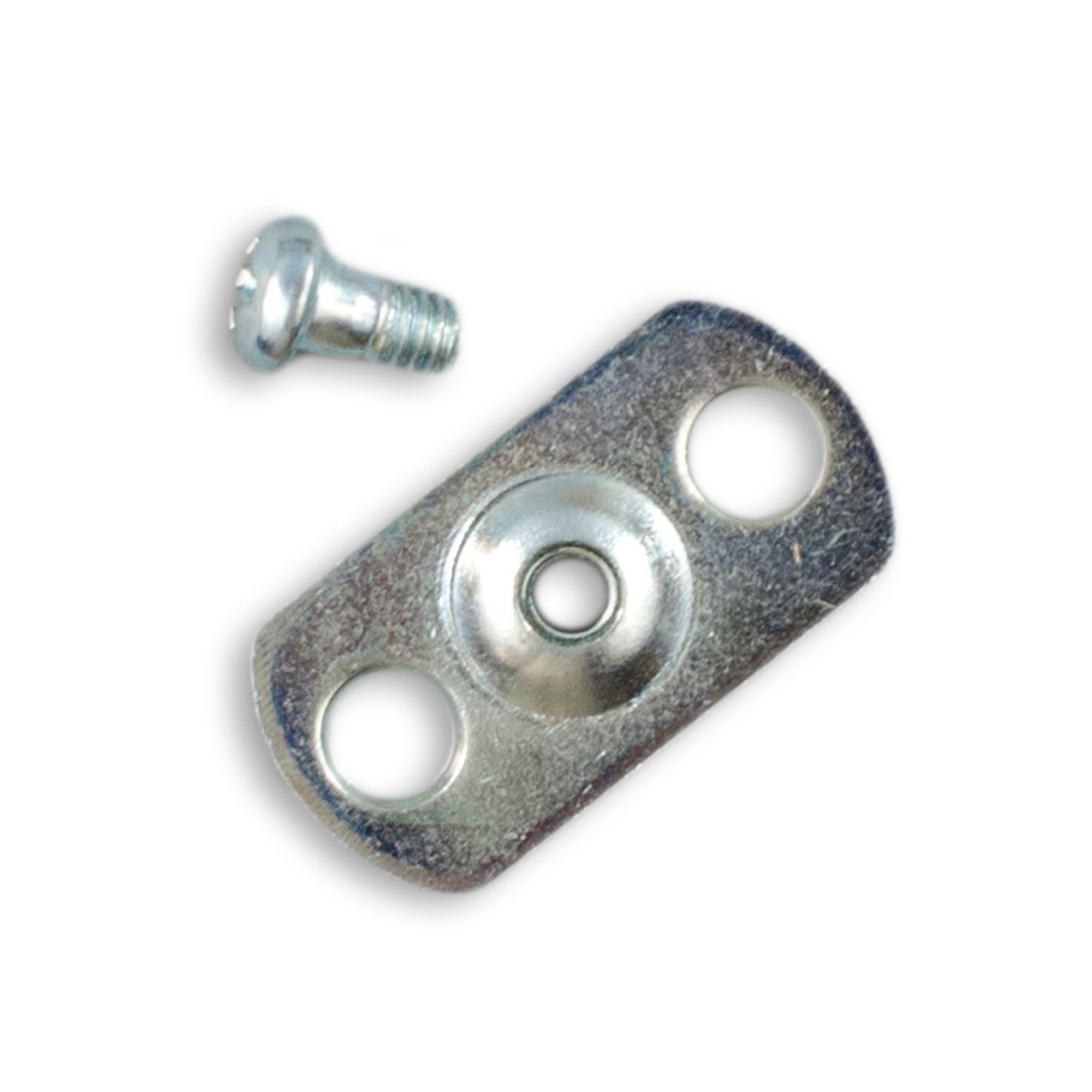

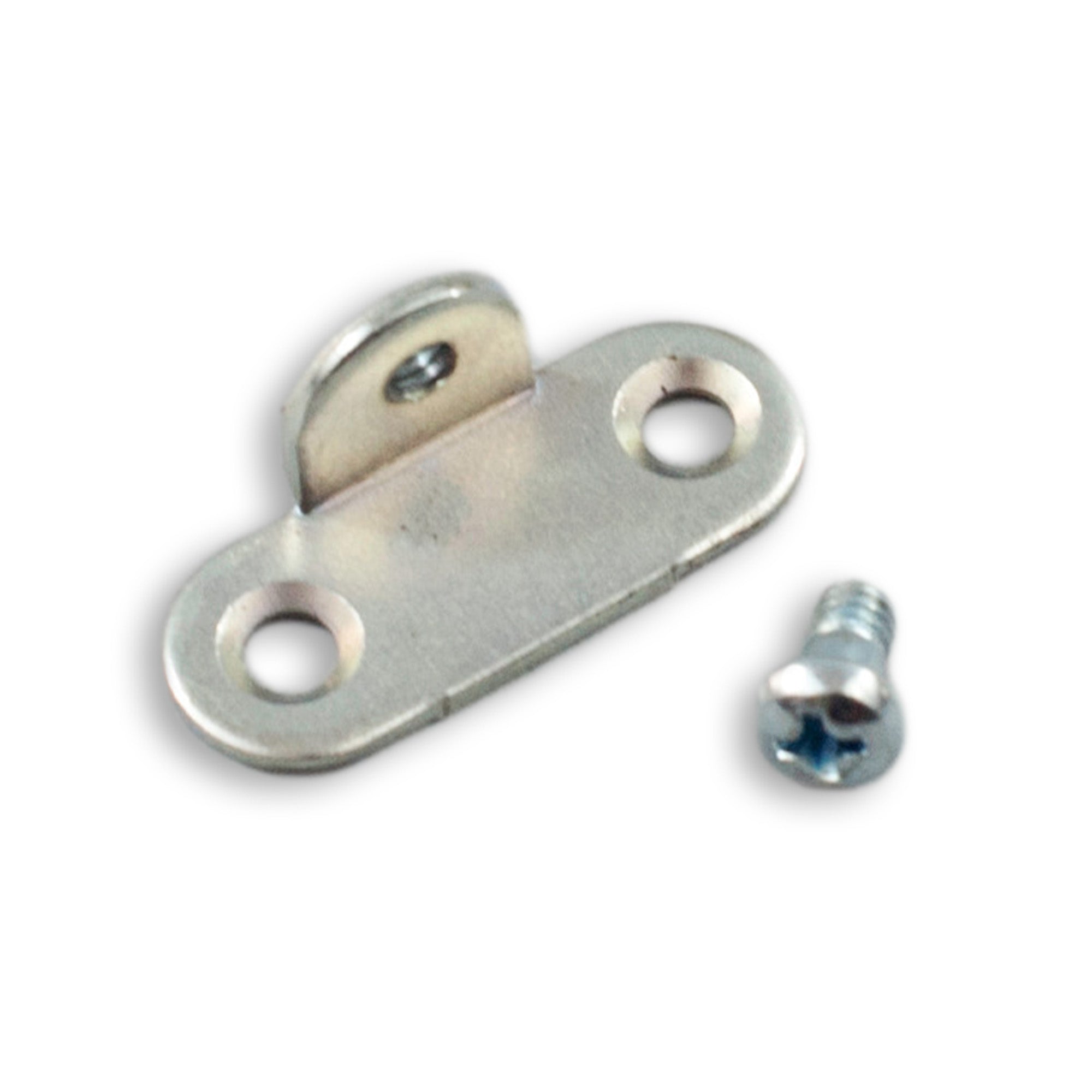

A complete top support assembly includes one support arm and two mounting brackets--one bracket on each end of the arm. Mounts secure to the arm with a special screw that allows the arm to pivot on the bracket. The mounting brackets come in two styles: flush mount and side mount. We've put together a universal top support kit as a convenience to our customers. This kit will fit any casket lid design configuration you choose.

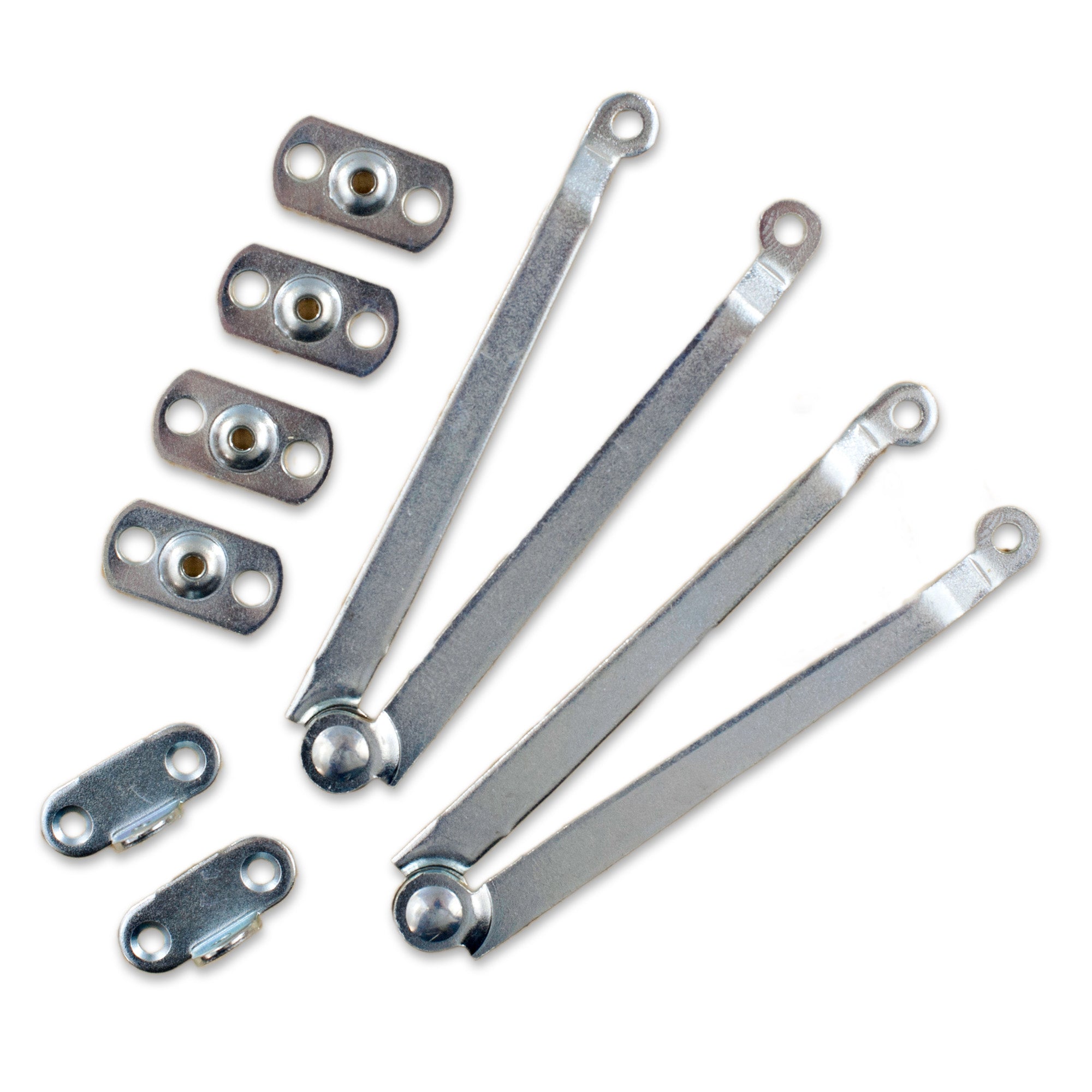

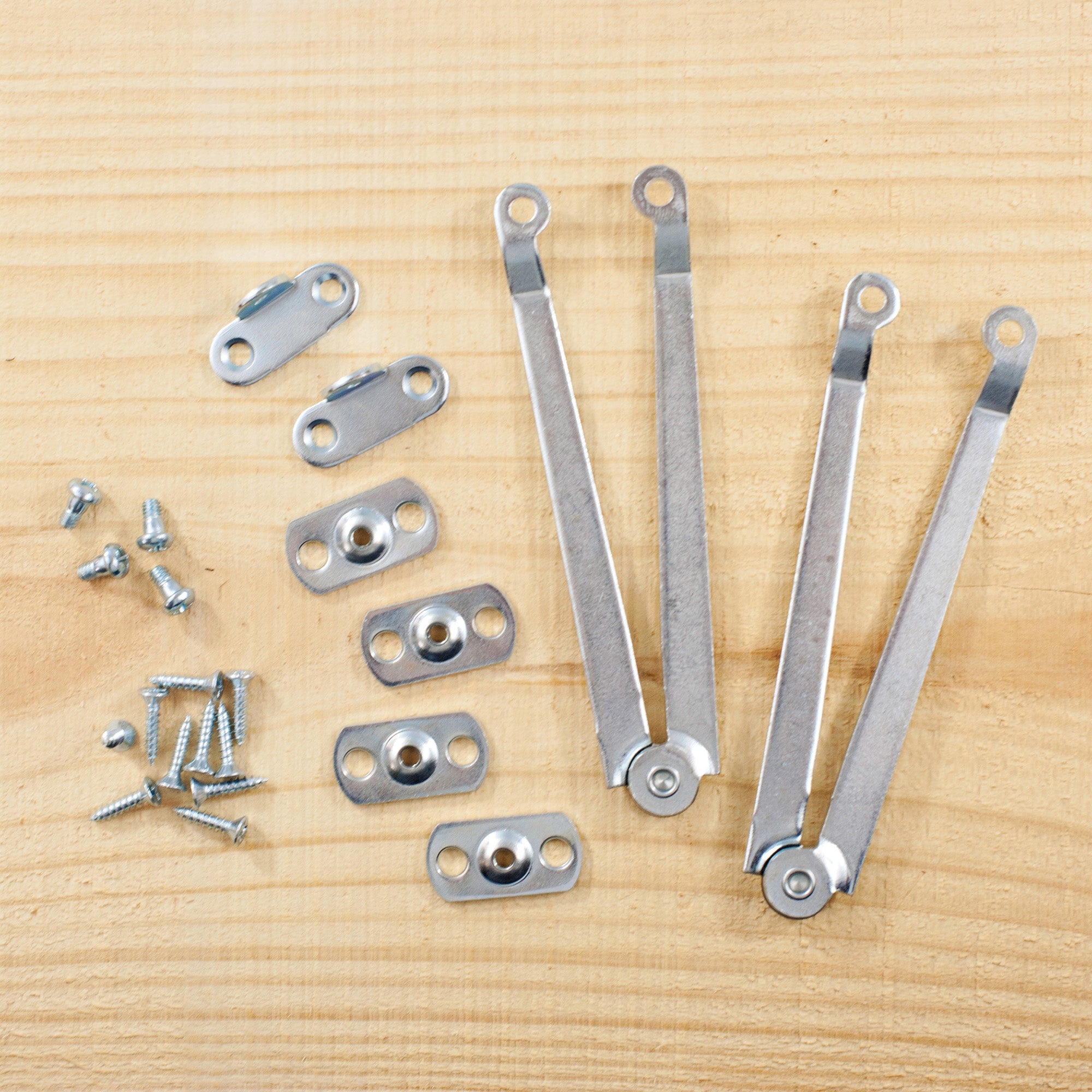

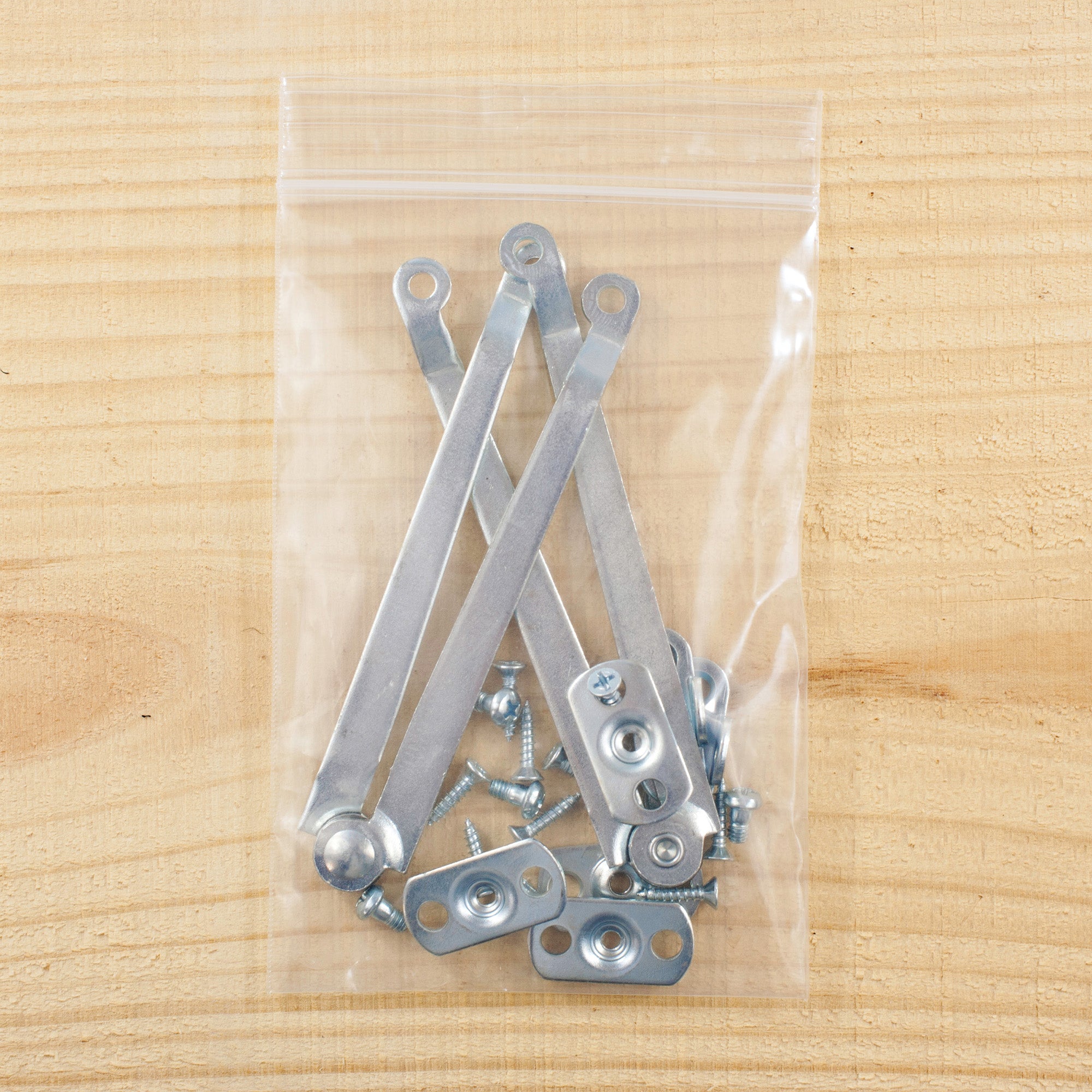

Top Support Universal Kit Package Contents

  • Top Support Arm (2)
  • Side Mount Bracket (4)
  • Flush Mount Bracket (2)
  • Bracket Pivot Screw (4)

If ordering the individual parts, be sure to order two mounts for each arm.

Installation Notes

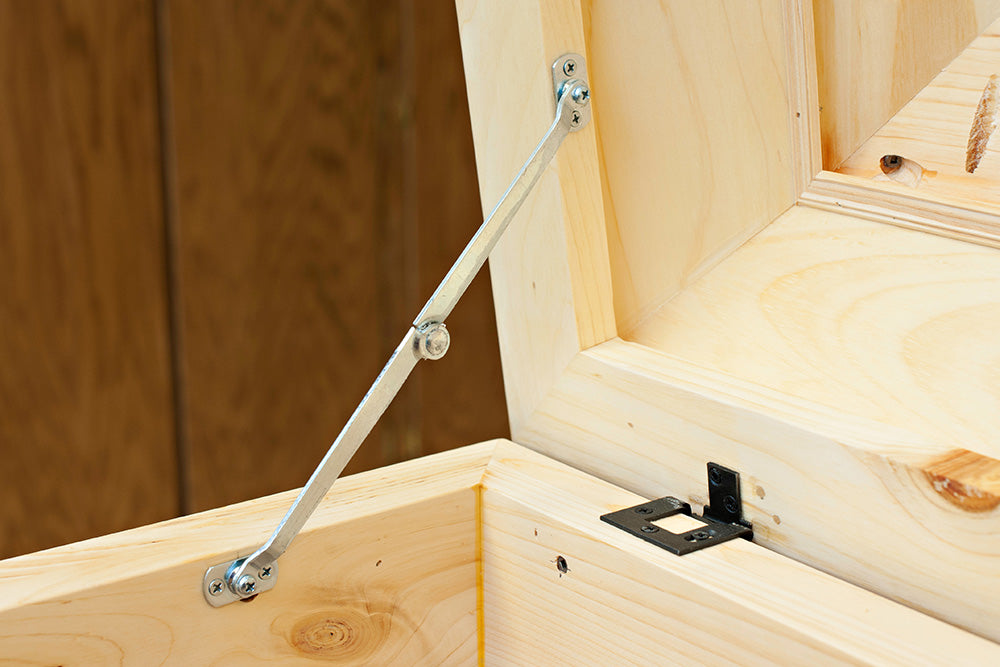

To mount the bracket, measure precisely 6 inches into the casket box from the hinge pivot point and 6 inches into the lid from the same hinge pivot point. The top support center pivot point (i.e. the knee) should fold toward you as you close the lid. Once closed, the folded top support should be roughly level with the inside top edge of the casket box. If the two pivot points are not in the same vertical line (with lid closed) then the knee joint of the top support will push up into your casket lid, or push down into the casket upholstery.  To adjust the casket lid open position to about 90 degrees, adjust the mounting point of the top support inside the casket box up or down the same vertical line about 6 inches from the casket lid hinge point.

Specifications

  • Length: 9 1/2 inches
  • Offset: 3/16 inches
  • Origin: Made in the USA
Product form

SKU: 622-104-IC-TOPKIT-790110

1233 in stock

$12.49

    • Orders received by 11AM ship the same day.
    • Orders over $400 ship free!

      Description

      Secure the casket lid in the open position

      Top supports secure the casket lid in the open position and prevents the lid from opening too far. Use a pair of top supports for each casket--one top support at the head end, and one at the foot end on both full and half-couch models.

      A complete top support assembly includes one support arm and two mounting brackets--one bracket on each end of the arm. Mounts secure to the arm with a special screw that allows the arm to pivot on the bracket. The mounting brackets come in two styles: flush mount and side mount. We've put together a universal top support kit as a convenience to our customers. This kit will fit any casket lid design configuration you choose.

      Top Support Universal Kit Package Contents

      • Top Support Arm (2)
      • Side Mount Bracket (4)
      • Flush Mount Bracket (2)
      • Bracket Pivot Screw (4)

      If ordering the individual parts, be sure to order two mounts for each arm.

      Installation Notes

      To mount the bracket, measure precisely 6 inches into the casket box from the hinge pivot point and 6 inches into the lid from the same hinge pivot point. The top support center pivot point (i.e. the knee) should fold toward you as you close the lid. Once closed, the folded top support should be roughly level with the inside top edge of the casket box. If the two pivot points are not in the same vertical line (with lid closed) then the knee joint of the top support will push up into your casket lid, or push down into the casket upholstery.  To adjust the casket lid open position to about 90 degrees, adjust the mounting point of the top support inside the casket box up or down the same vertical line about 6 inches from the casket lid hinge point.

      Specifications

      • Length: 9 1/2 inches
      • Offset: 3/16 inches
      • Origin: Made in the USA
