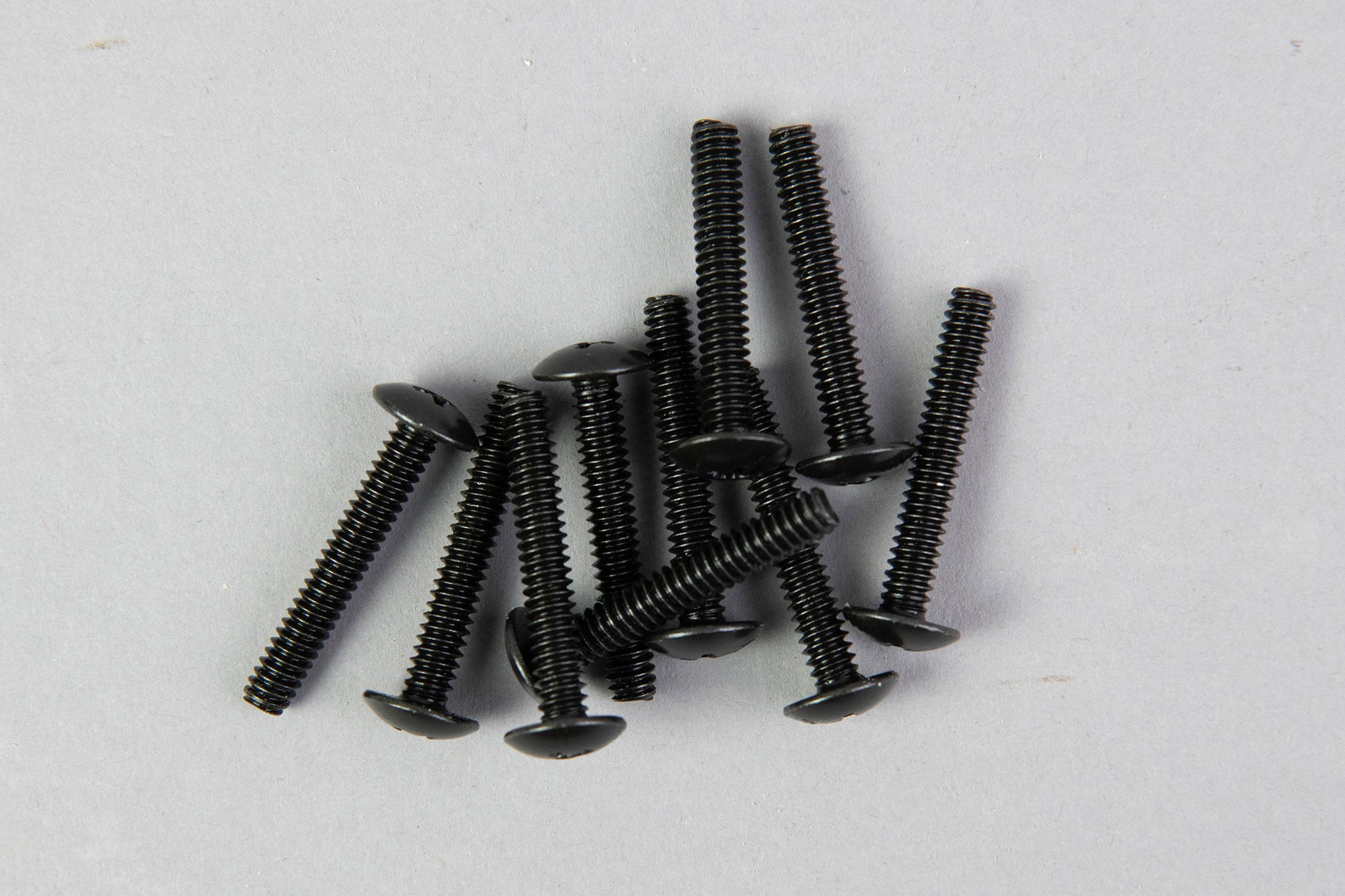

Machine Screw, #10-24 x 1-1/4 in., Coarse Thread, Phillips Pan Head, Black Oxide

Machine Screw, #10-24 x 1-1/4 in., Coarse Thread, Phillips Pan Head, Black Oxide

Casket Builder Supply

Regular price $9.99 Sale

This machine screw is used for attaching adaptor style swing bar arms to the casket wall.

Suggested use is 1 or 2 per swing bar arm (each arm adaptor has 3 holes). Some builders use 1 Machine Screw in the middle hole combined with wood screws in the 2 outside holes.

Machine screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.

Available in the following quantities:

  • 1 LB (Approximately 113 pieces)
  • 5 LB (Approximately 565 pieces)

Specifications:

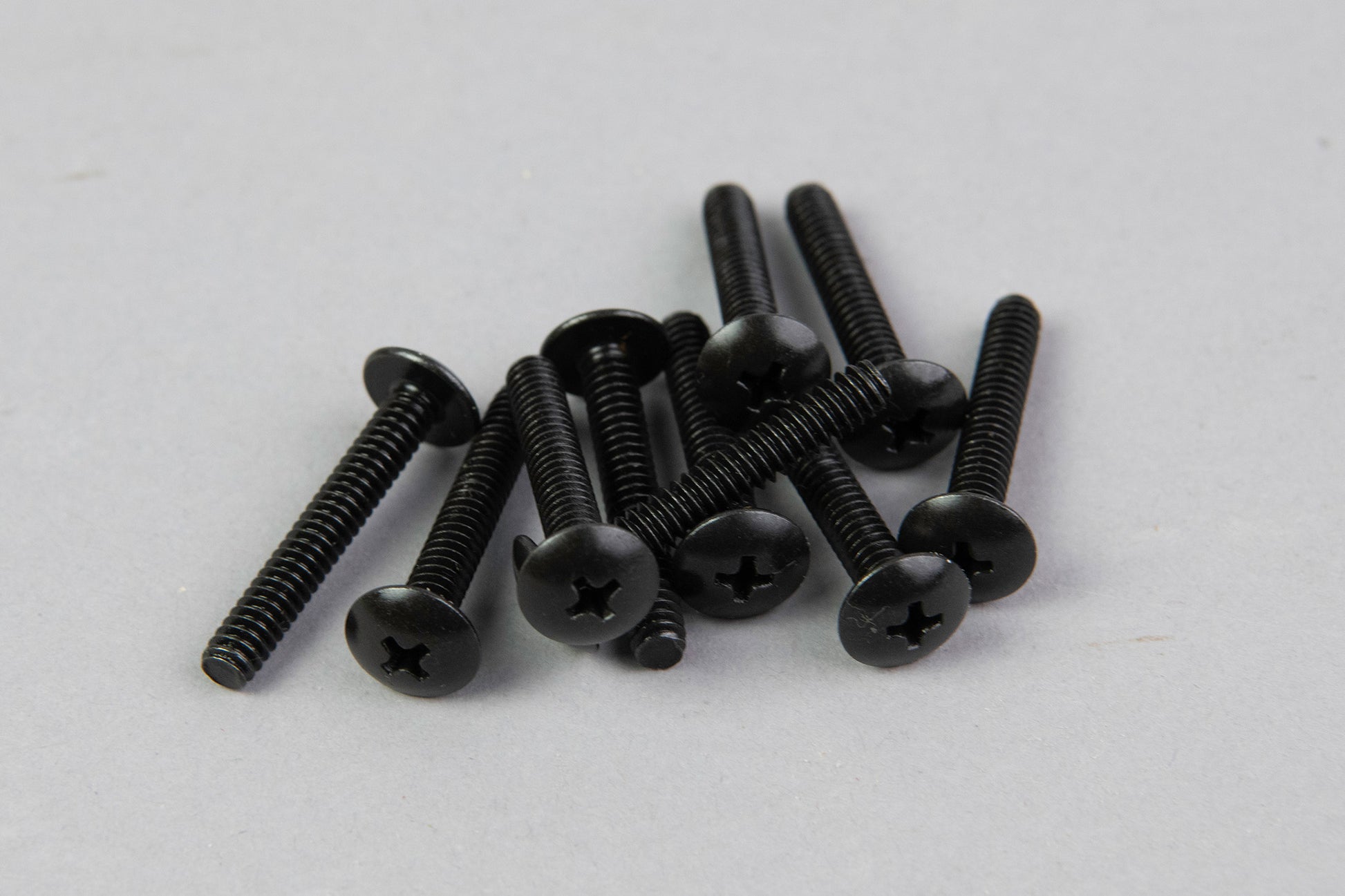

  • Fastener Type:  Machine Screw Phillips Pan Head
  • Size:  #10-24 x 1-1/4 in.
  • Diameter/Nominal Size:  #10

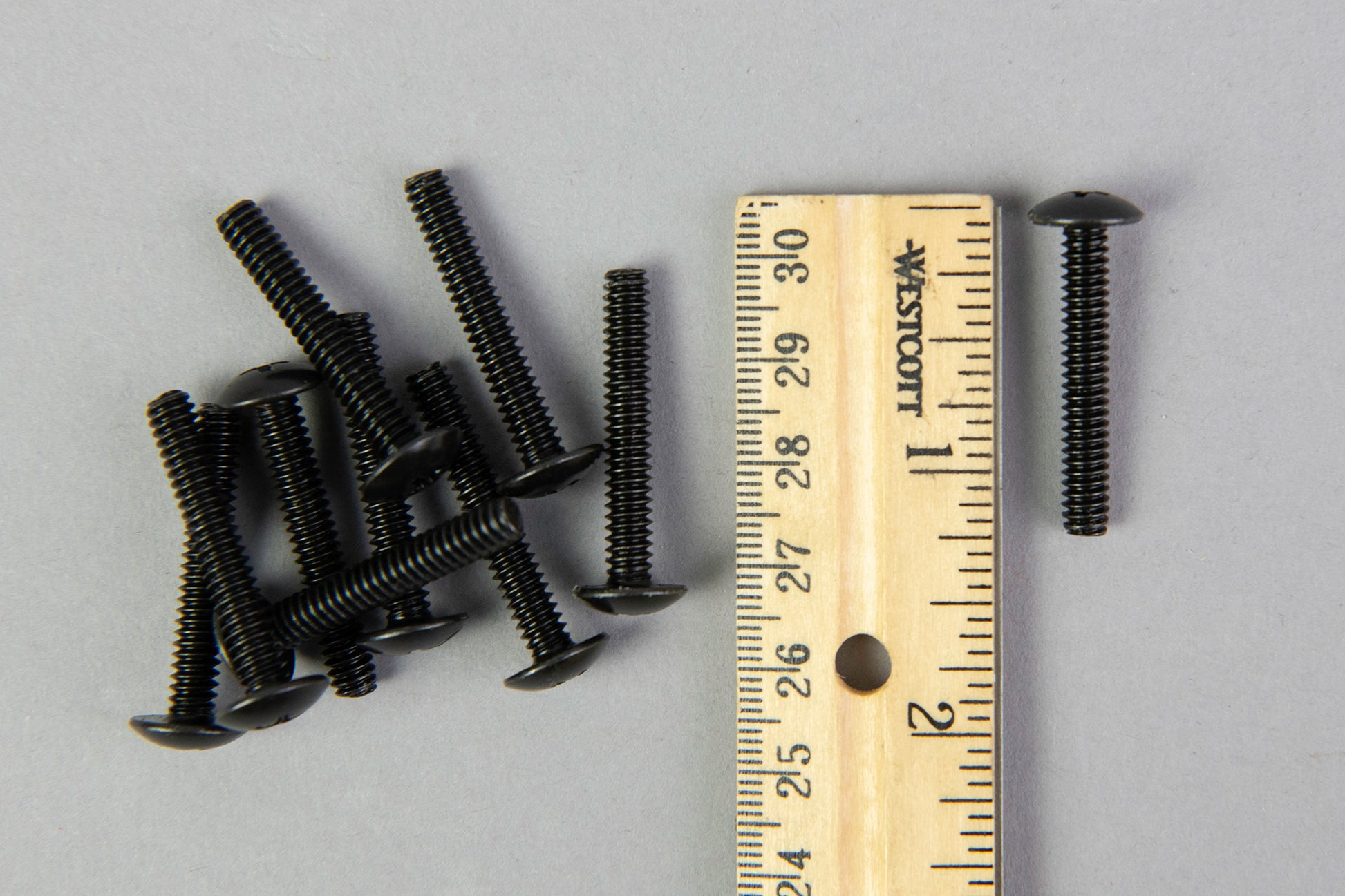

  • Length:  1-1/4 in.
  • Wrench Size/Across Flats:  PH#2
  • Head Diameter:  0.373-0.357 in.
  • Head Height:  0.122-0.133 in.
  • Thread Pitch:  24
  • Thread Pitch Type:  Coarse
  • Thread Direction:  Right
  • Thread Coverage:  Full
  • Material:  Low Carbon Steel
  • Finish:  Black Oxide



Building a casket?


Want to learn more about building caskets? Have a look at our friendly casket builder's guide, So You Wanna Build a Casket?
