Separable Hinges for Casket Lids
Iron City Stamping
Regular price
$2.37

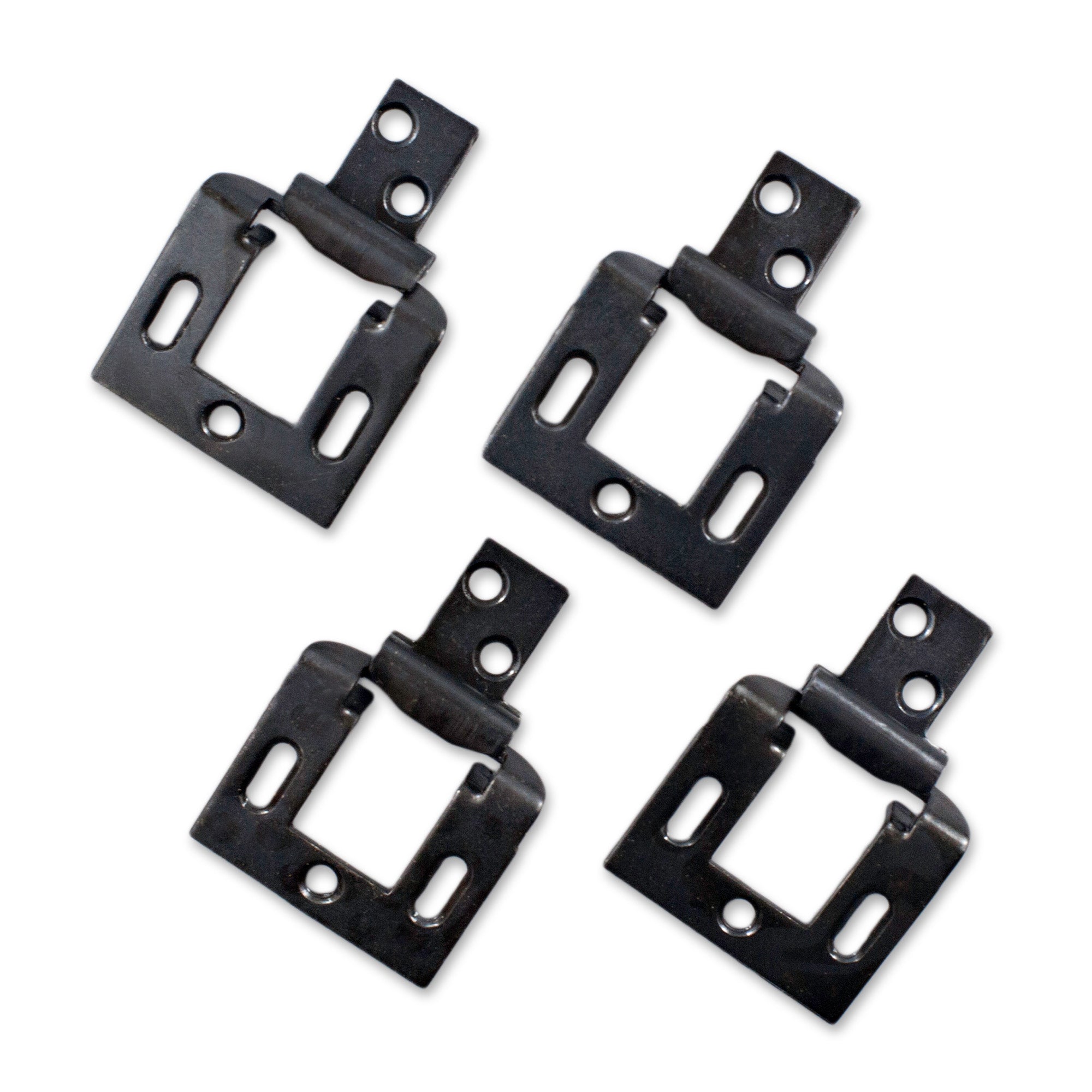

Casket Hinges, Separable Hinges for Lids
Separable hinges are commonly used on caskets for easy removal of the casket lid during finishing and upholstery after woodworking is completed. At a minimum, use four hinges per casket for a standard half couch (two piece lid) or full couch (one piece lid). Some craftsmen use six hinges for added security and for hardwood caskets. Hinges sold by each and include black #6 by 3/4 inch screws. Hinges sold in bulk (pack of 100) DO NOT include screws.
Installation Tips for Casket Hinges...
Edge vs. Flat Mount Styles

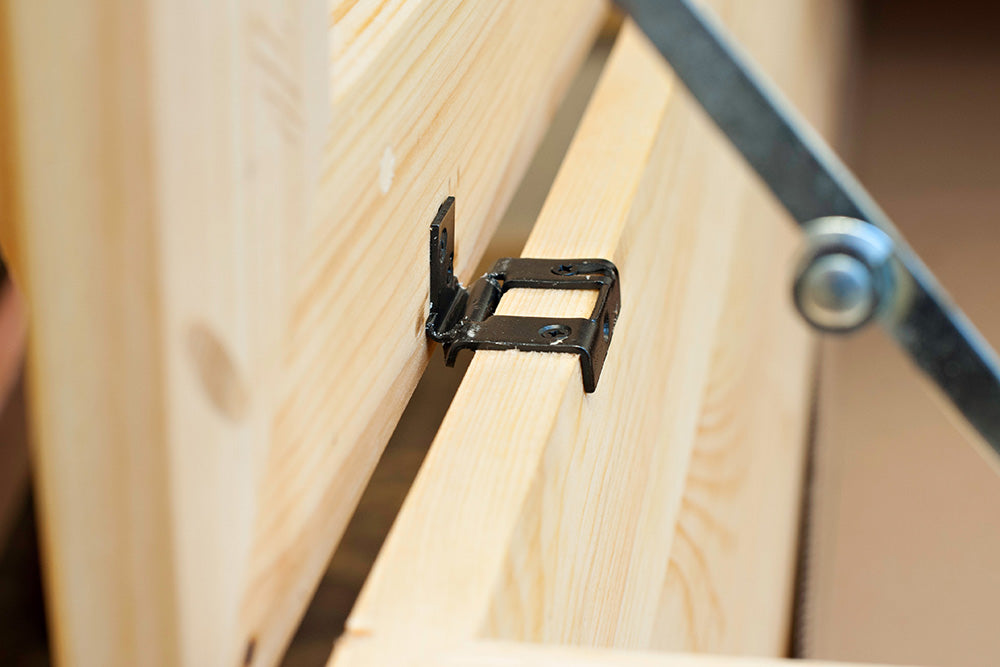

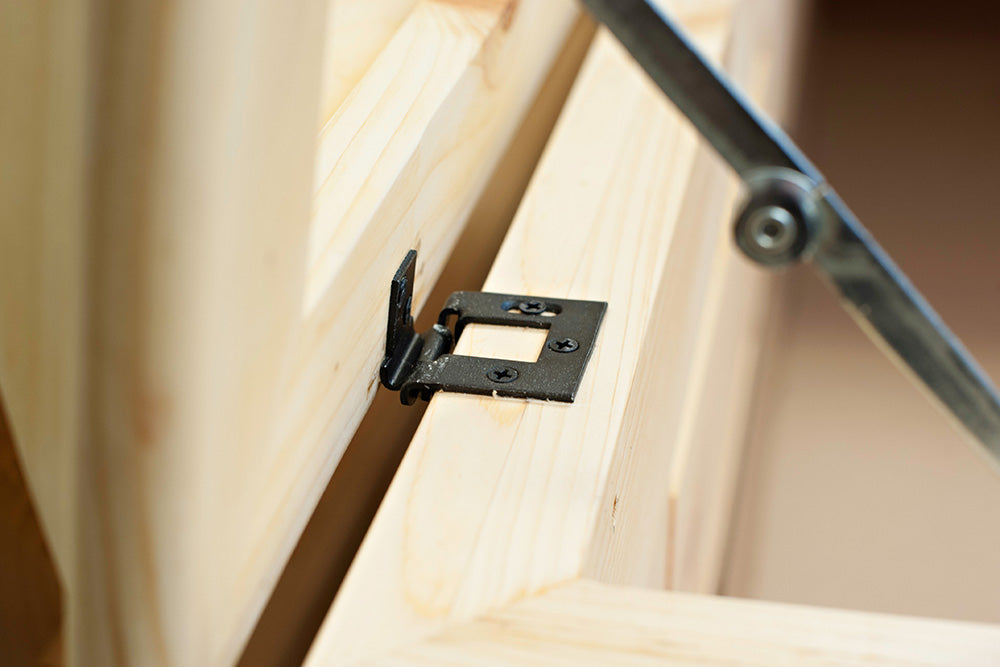

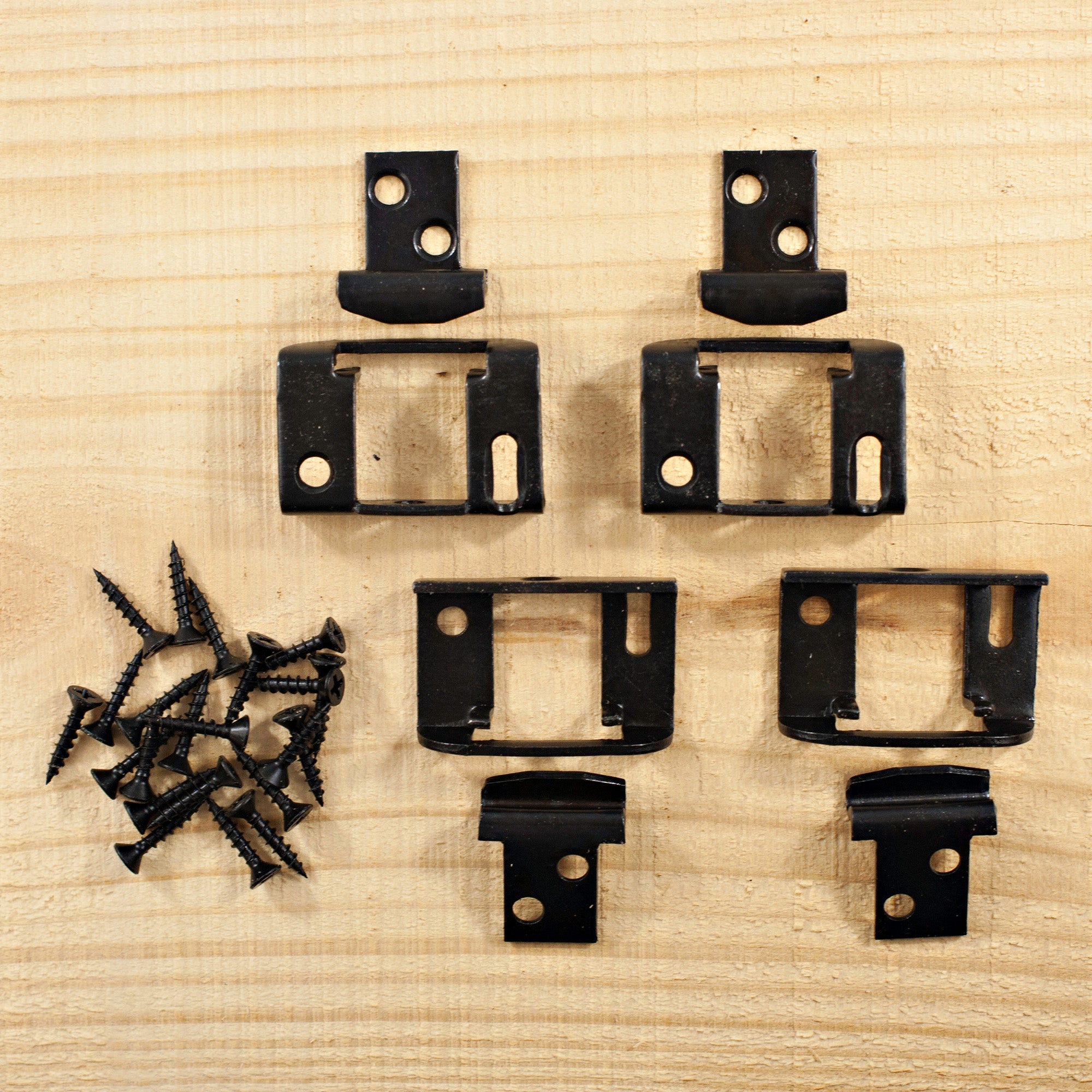

There are two styles of hinge escutcheon or base: edge mount style and flat mount style. An edge mount means the hinge escutcheon--the part that attaches to the casket box--is designed to fit over the edge of a standard 3/4-inch thick piece of board wood. If the top edge of your casket box wall is thicker, then you need the flat mount style of hinge.

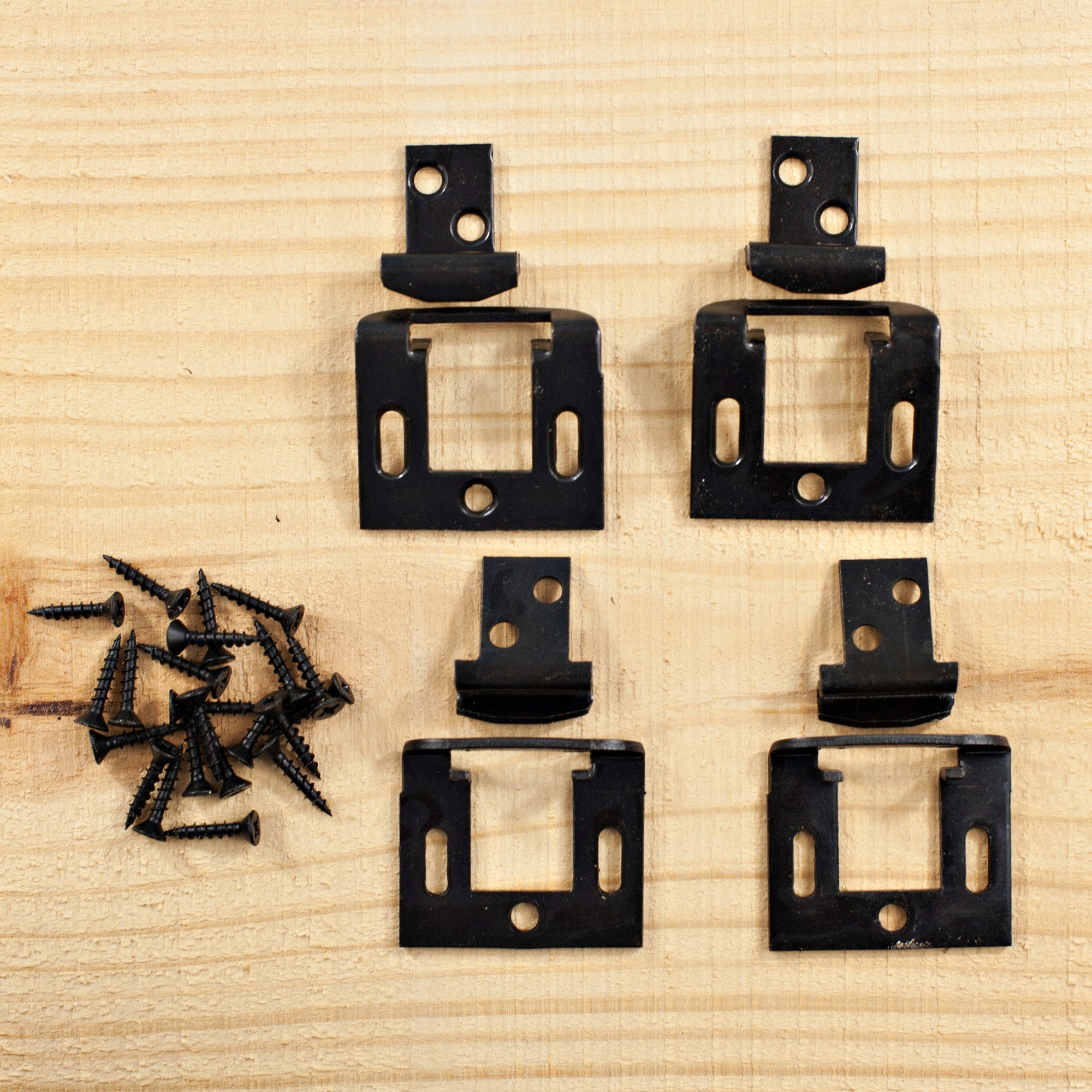

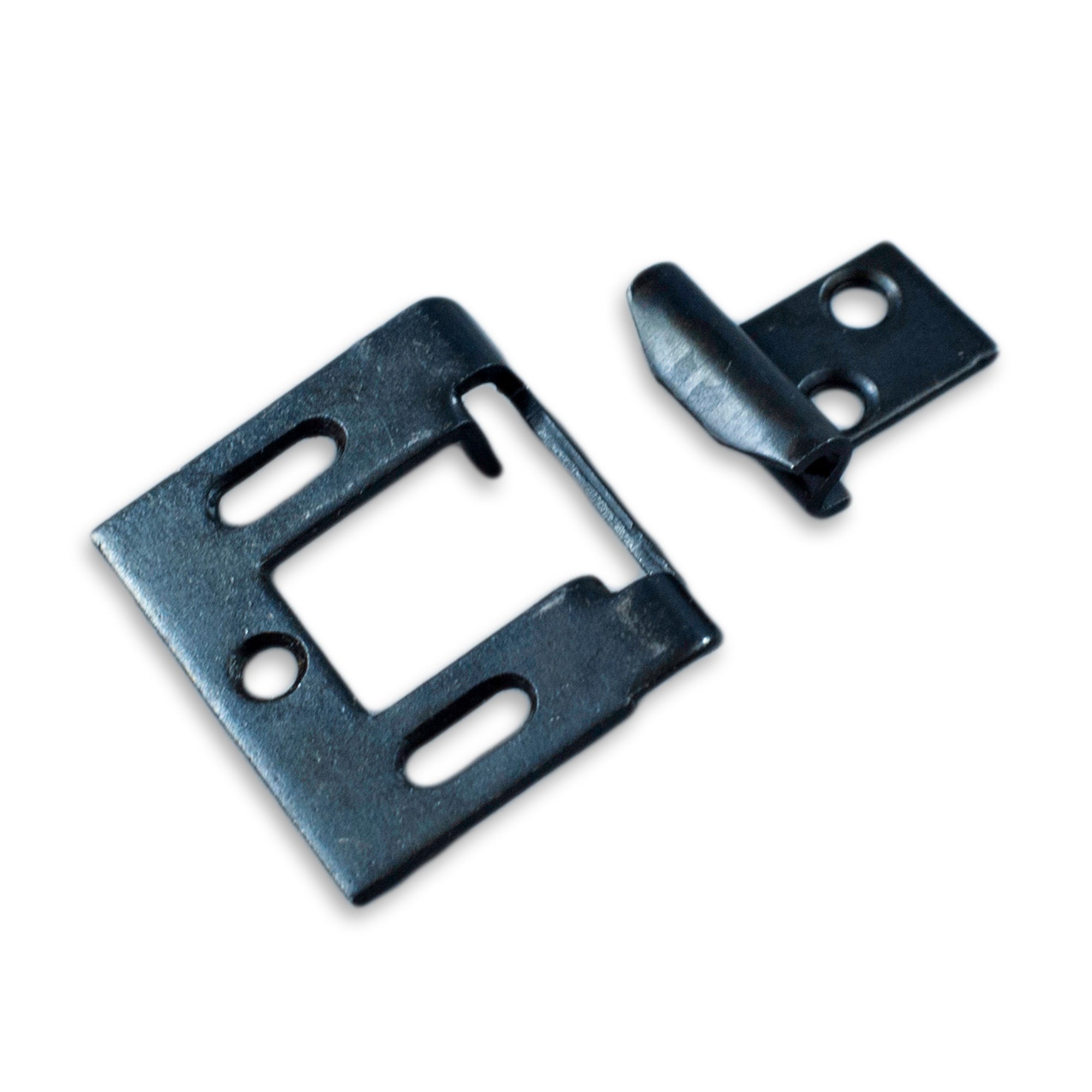

What's Included
- Hinge escutcheon/base (1)
- Hinge stud (1)
Order 4-6 Hinges for EACH Casket
Bulk Pack of 100
Bulk packs include base and stud for 100 hinges. At 4 hinges per casket, this is enough hinges for 25 caskets. Screws not included in bulk packs.
Building a casket?
Want to learn more about building caskets? Have a look at our friendly casket builder's guide, So You Wanna Build a Casket?
hinges
I may give a higher rating once I get directions and install them. Why don't directions come with the product?
United StatesHi Jim, how can we help you? These hinges install just like any other cabinet hinge. The base attaches to the top edge of hour casket sidewall. The stud attaches to the lid. Most casket makers do not mortise in the base, just attach on top. Then, with all bases installed, position you lid(s) so they are properly centered. Then mark the lid at the two edges of the base where the hinge stud will fit in. Then turn over the lids and attach the studs. To attach the lid to the casket, hold lid open about 100 to 105 degrees and the stud will drop into the base. Then pull the lid closed and the stud will not separate from the base.
The quality is great
I'am from Canada, I ordered from you before and I did not pay any duty this time I paid import duty almost the same as my order. It hurts..
CanadaHinges
recived them in two days allways great service from Casket Builders supply
United StatesCasket lid hinges
It would have been very helpful to have instructions sent along with the hinges and the lid supports. There are specific dimensions that must be adhered to In mounting the lid supports. However the lady I talked to about them was very polite and understanding and I would shop at casket builders supply again.
United StatesGreat hinges
My husband and I have always wanted a simple pine box for our caskets. Trust me they are simple! Without Casket Builder Supplies we could never accomplish this. We did a trial run of these hinges today and will install on the casket tomorrow. Not only have we been pleased with our order, but also with the prompt answers to a few questions about installation. Mary has been great.
