Casket Hardware

Storage for important documents in a casket This document tube is designed to be installed in the wall of a metal casket, but can also be mounted inside a wood casket. Specifications: Length - 5 in. Width - 1 in. (at widest point) Weight - 4 oz. Components: Document Tube Holder Removable Tube O Ring Protector O Ring Jam Nut Cap

Read more less

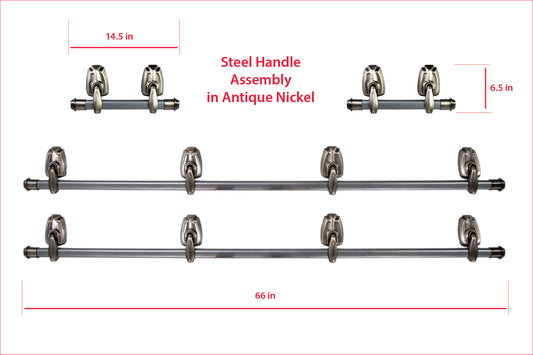

This decorative casket handle is composed of a Crown Royale lug is with two swing arms, bar and tips. Also known as a steel extension handle or an EAR. Placement variations include:- One long bar set on each long side with a short bar set on each end- Three short bar sets on each long side and a short bar set on each end  Specifications Short Bar Width: 14-1/2 in. Long Bar Width: 64-1/2 in. Height: 5-1/2 inHeight: 5-1/2 in.Steel: 0.050 inches (1/20 inch) - 18 ga.Finish: UnfinishedSterling Part No: E703Lug: G147Arms: G307Bar: TM54Tips: G264 Finishing These parts are ready for your unique and creative finishing coat. While we offer swing arm parts in a small variety of polished and antique finishes, there are countless methods to finish these steel parts to achieve the unique style you want. Learn more by reading our article on how to finish raw steel.  History We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1940s. Learn more about these vintage parts by reading about our suppliers. This particular configuration was made from steel stamped in Chicago and then plated or painted by Sterling Casket Hardware in Virginia. The first thing you will notice when you receive these parts is that the steel is higher quality and heavier gage than many similar brackets made by others.

Read more less

Ideal for securing decorative casket corners Use one pair of screws for each decorative casket corner.  The small heads nicely seat in the holes stamped into the corners and the color options nicely match the corner finishes. Heat treated for strength Deep sharp threads for excellent holding power Less conspicuous on walnut, dark oak, cherry, and other darker woods Available in the following quantities: 10 pieces 1 LB (approx. 400 pieces) Available in the following colors/finishes: Statuary Bronze (matches Ant. Copper, Ant. Bronze, Metallic Bronze, Polished Bronse) Unplated Steel ( matches Ant. Bronze, Oil-rubbed Bronze) Black Phosphate (matches Venetian Bronze, Handforged Black, Gloss Black, and River Black Satin) Yellow Zinc (matches Polished Gold) Zinc Plated (matches Polished Silver) Specifications: Fastener Type: Wood Screw Size Description: #6 x 1 in. Diameter Nominal Size: #6 Head Size: 17/64 in. Length: 1 in. Material: Steel Finish: Assorted Drive Type: Square Recess Size: #1 Origin: Imported

Read more less

Crucifix, Christian Accent The crucifix is an image of Jesus on the cross, as distinct from a bare cross. The representation of Jesus himself on the cross is referred to in English as the corpus. The crucifix is a principal symbol for many groups of Christians, and one of the most common forms of the Crucifixion in the arts. This crucifix has 2 small holes for securing in place with a pair of #4 wood screws. These parts are high quality durable plastic in a metalized finish.  If you'd like a color that is not shown, email or call for a quote. SPECIFICATIONS Part: PC7614 Height: 17-1/2 in. Width: 9-1/2 in. Weight: 8 oz. Finish: Metalized Plastic Origin: Brazil

Read more less

Vintage Art Deco Lug This art deco lug with one swing arm is the real vintage. We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1940s. Learn more about these vintage parts by reading about our suppliers. The first thing you will notice when you receive these parts is that the steel is higher quality and heavier than many similar brackets made by others. Specifications Lug Height: 6 in. Lug Width: 2-1/2 in. Arm Length: 3-3/4 in. Arm Width: 1-1/8 in. Arm Protrusion (at rest): 1-1/2 in. Handle Size: 5/8 x 1-1/4 in. bar with 1/4 in. radius Steel (arms): 0.025 (1/40 inch) - 24 ga. Steel (adapters): 0.050 inches (1/20 inch) - 18 ga. Steel Source: Made in USA, Always Finish: Unfinished Finishing These parts are ready for your unique and creative finishing coat. While we offer swing arm parts in a small variety of polished and antique finishes, there are countless methods to finish these steel parts to achieve the unique style you want. Learn more by reading our article on how to finish raw steel.

Read more less

This steel arm and adapter style casket handle is common on wood caskets. This type of arm hinges on a patented 3-hole pattern and can be connected to a simple single adapter or a pair of arms can be used with a lug. The arm is secured to the outside of a wood casket with single or double lug or bracket. The arm is wrapped around an oval dowel handle made from wood or steel. This arm is available in two sizes including a 1x1-1/4 oval and a 1x1-3/8 oval. Both are compatible with our wooden oval dowel handles, with the smaller of the two making for a a very tight fit with our oval wooden dowels. The 1x1-3/8 arm and adapter is a little easier to fit with our oval dowels. If you are making your own oval dowel handles with a 1-inch bullnose bit, then order the 1x1-1/4 size.  If you are fitting with our oval steel bar stock, use the 1x1-1/4 size. This swing bar is the real vintage. We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1940s. Learn more about these vintage parts by reading about our suppliers. The first thing you will notice when you receive these parts is that the steel is higher quality and heavier gage than many similar brackets made by others. This type of arm is an adapter design. The bracket is secured to the side of the casket with single or double lug or bracket. The arm hinges on a patented 3-hole pattern. This arm is compatible with our wooden oval dowel handles. Specifications Part: G265Arm Length: 4 in.Arm Width: 1-1/4 in.Arm Protrusion (at rest): 1-1/4 in.Handle Size: Oval 1x1-3/8Steel (arms): 0.025 (1/40 inch) - 24 ga.Steel Source: Made in USAFinish: Unfinished Finishing These parts are ready for your unique and creative finishing coat. While we offer swing arm parts in a small variety of polished and antique finishes, there are countless methods to finish these steel parts to achieve the unique style you want. Learn more by reading our article on how to finish raw steel.

Read more less

This decorative end cap for swing bar casket handles is the real vintage. This tip fits a 5/8 by 1-1/4 Triple Groove Oval bar style handle. Specifications Tip Height: 3/4 Inch Tip Length: 2 1/2 Inch Tip Width: 2 1/4 Inch Handle Size: 5/8 x 1-1/4 Inch oval Steel: 0.050 Inches (1/20 inch) - 18 ga. Steel Source: Made in USA, Always Finish: Unfinished Part No: G-264 Finishing These parts are ready for your unique and creative finishing coat. While we offer swing arm parts in a small variety of polished and antique finishes, there are countless methods to finish these steel parts to achieve the unique style you want. Learn more by reading our article on how to finish raw steel. History We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1950s. Learn more about these vintage parts by reading about our suppliers. The first thing you will notice when you receive these parts is that the steel is higher quality and heavier gage than many similar brackets made by others.

Read more less

This adapter is the basic method of attaching a swingbar casket arm to the outside wall of the casket. The 3-hole pattern dates back to a 1920s patent held by GMMCO in Chicago in the 1920s and has been copied by every other casket hardware handle manufacturer on the planet. This part is stamped in Chicago from US steel on the same equipment, and under the same family management, today as it was in the 1920s. This adapter is compatible with any size or style of swing arm we offer. This adapter is an American original.  SpecificationsHeight:Width:Material: SteelFinish: None (raw steel)

Read more less

The finishing touch for your Swing Bar handles. This dowel end cap is for covering the open ends of wood dowel or steel tube swing bar style casket handles. The tip secures in place on the end of the handle with two screws or two rivets.  This end cap for swing bar casket handles is the real vintage. We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1950s. Learn more about these vintage parts by reading about our suppliers. The first thing you will notice when you receive these parts is that the steel is higher quality and heavier gage than many similar brackets made by others. This tip is compatible with our oval wooden dowels. Tip is available in plain steel and in a variety of powder coated finish colors. If you have a particular color request, let us know and we can quote you. Plain steel tips are ready for finishing. Specifications Part No: G400 Tip Height: 2 in. Tip Length: 1-1/2 in. Tip Width: 1-5/8 in. Handle Size: 1 x 1-3/8 in. oval with 1/2 in. radius Steel: 0.050 inches (1/20 inch) - 18 ga. Steel Source: Made in USA, Always Finish: Unfinished or Powder Coat Finishing These parts are ready for your unique and creative finishing coat. While we offer swing arm parts in a small variety of polished and antique finishes, there are countless methods to finish these steel parts to achieve the unique style you want. Learn more by reading our article on how to finish raw steel.

Read more less

Cross, Carved The cross is a principal symbol for many groups of Christians.  This decorative cross is made and finished to appear like carved wood. Each cross has 2 small holes for securing in place with a pair of #4 wood screws. These parts are high quality durable plastic in a muted natural wood tone finish.  If you'd like a color that is not shown, email or call for a quote. SPECIFICATIONS Part: PC7425 Height: 17-1/2 in. Width: 9-1/2 in. Weight: 8 oz. Finish: Natural Wood Origin: Brazil

Read more less

This decorative steel bar stock fits a 5/8 by 1-1/4 oval bar style swing arm bracket. It is available in standard 72 inch lengths to accommodate either a single handle on the long side of a casket or a several short handles for the sides or end of a casket. Use short bars to construct 3 separate handles for a casket (a.k.a. an EAR).  Specifications Profile Size: 5/8 x 1-1/4 in. Oval Length: 72 in. Steel: 0.050 inches (1/20 inch) - 18 ga. Steel Source: Made in USA, Always Finish: Unfinished Part No: TM54 Finishing These parts are ready for your unique and creative finishing coat. While we offer swing arm parts in a small variety of polished and antique finishes, there are countless methods to finish these steel parts to achieve the unique style you want. Learn more by reading our article on how to finish raw steel. History We've partnered with General Machinery & Mfg. Co. of Chicago to revive these unique vintage parts--some of which have not been produced since the 1950s. Learn more about these vintage parts by reading about our suppliers. The first thing you will notice when you receive these parts is that the steel is higher quality and heavier gage than many similar brackets made by others.
